Coming Soon

Launch Date: June 16, 2026
Retail Price: $129.99

Music

Podcasting

Content Creation

Streaming

Music

70dB Mic Gain

 192kHz/24bit

 Headphone Amplifier

 ASIO Driver

70dB Mic Gain

Hybrid Connectivity

 iPad Music

 Direct to Phone

Direct to Camera

 Revolutionary Dual USB

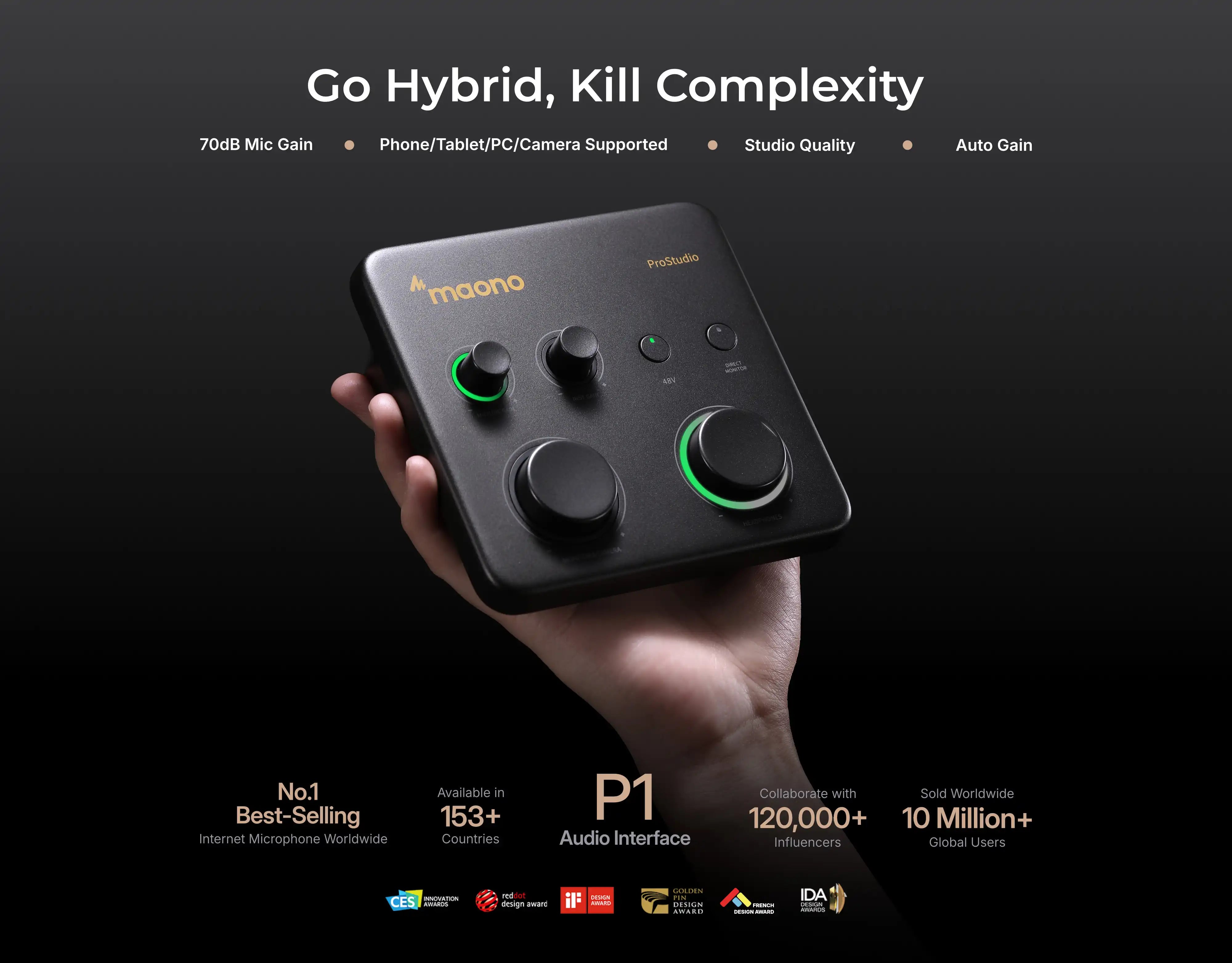

MAONO P1 USB Audio Interface

Powerful Software

Wide Compatibility

 what's in the box

Powerful Software

MAONO Interface Series

ModelP1 P2 PS22 Lite
Mic Preamps 1 2 1
Instrument Inputs/Line Inputs 1 2 1
Auto Gain × ×
Mic Gain Range70dB 56dB 56dB
EIN-130dB -130dB -130dB
OTG Port×
Mute×
Camera Output×
MaterialAluminum Alloy Panel Zinc-Alloy Metal Panel Plastic
Best ForSolo Creator · Streamer · Musician · Video Podcaster Creator · Streamer · Musician · Video Podcaster Solo Creator · Musician · Podcaster
Swipe left or right to see more

SPEC

Compatible Devices
Guitar, Headphone, Microphone, Smartphone, Tablet
Supported Software
Ableton Live/Studio One/Logic Pro/Cubase/GarageBand/FL Studio/youtube/tiktok/OBS/Twitch/Discord
Connectivity Technology
AUX, USB
Number of Channels
2
Impedance
2971 Ohms
Operating System
Android, Windows, iOS, macOS
Audio Input
Microphone, USB
Maximum Sample Rate
192 KHz

FAQs

For connecting active monitor speakers.

Exclusive for video shooting📷: Connect it to the camera's microphone port with a 3.5mm audio cable to directly record high-quality human voices processed by the audio interface, eliminating the need for post-production audio-visual synchronization.

Safe under standard operation: No current loop is formed for the 48V voltage when using standard XLR cables, so damage is unlikely.

⚠️ High-risk operations: Hot-plugging the microphone with 48V phantom power on; Using non-standard cables.

✅ Safe practice: Always turn off 48V phantom power before plugging or unplugging the microphone.

Operation requires caution:

  • If 48V phantom power is a global switch: ⚠️ Condenser microphones require 48V power on, while dynamic microphones can withstand it but are not recommended for long-term power supply; ⚠️ Ribbon microphones are strictly prohibited from being connected!
  • Optimal solution: Ensure 48V phantom power is controlled by separate channels before using the two types of microphones together.
